Z-Axis’sSDSE EuroCode (STAAD Design Summary Extractor EURO CODE)

Want DESIGN SUMMARY of R.C.C Members From STAAD
that are
Most relavant Design Information

And

• Orginized Properly
• All Design Data of Beams Displayed Floor Wise and Row Wise
• All Design Data of Columns Displayed for Each Column Bottom To Top
• Displays the Extracted Area of Steel for Columns or Beams
• Displays the Extracted Forces for Columns or Beams

+

Want to get all the above

by extracting data from STAAD Anl file ?

Then Z-Axis's SDSE EuroCode

is THE Solution for your requirments

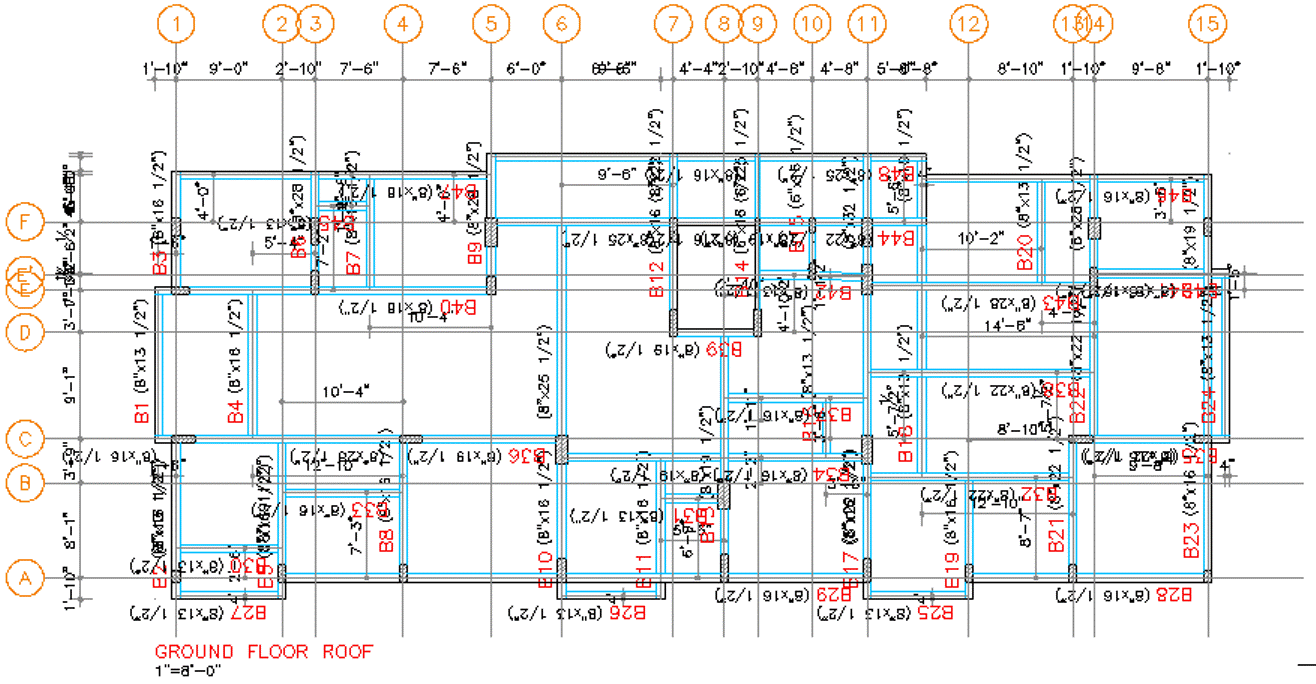

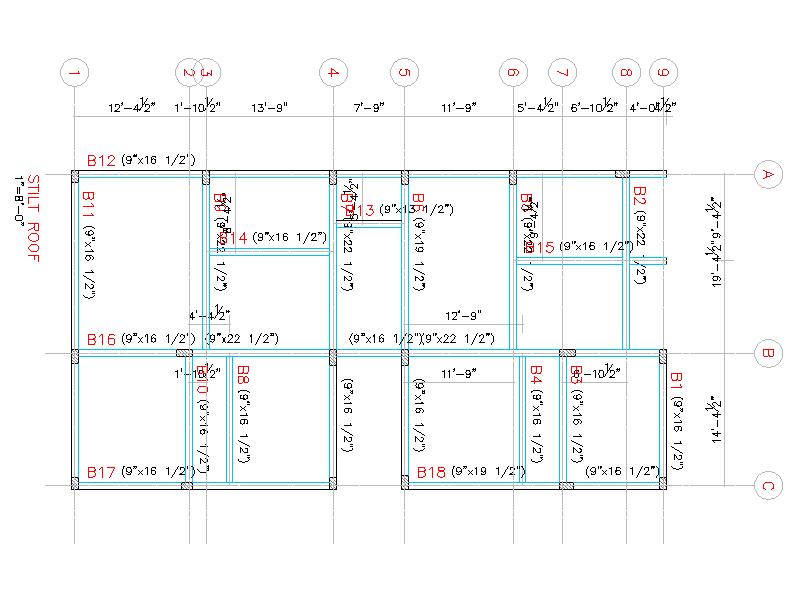

The above Image is that of Arranged Beams or Column Design Summary Extracted from STAAD output file (.ANL file)
